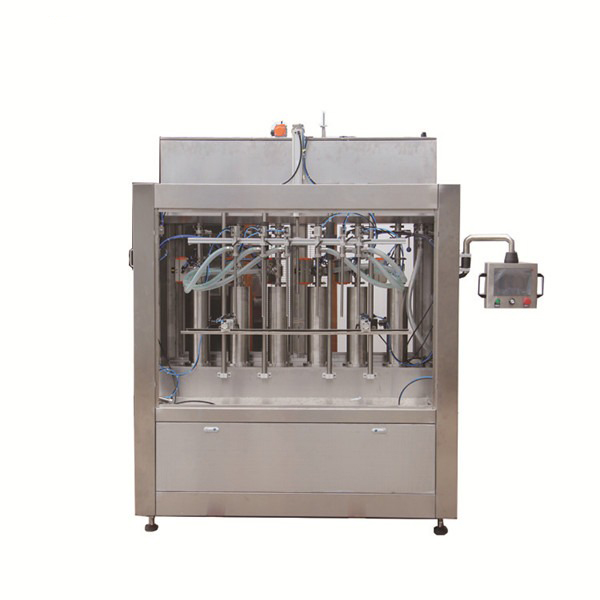

Stroj na plnenie tekutín do umývačky riadu

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

technické údaje

---

stroj na plnenie tekutín do umývačky riadu
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

popis

---

CE z EÚ
ISO9001
Splniť požiadavky SVP
longlife of service, low mainteinance rate

Hlavná funkcia

---

Stroj je pokročilý vysoko presný plniaci stroj, ktorý dokáže automaticky dokončiť proces počítania, plnenia a uzatvárania fliaš.

Vlastnosti

1. Kompaktná štruktúrovaná, dobre vyzerajúca, ľahko ovládateľná a vysoko automatizovaná.

2. kontakt komponentov s materiálom je vyrobený z nehrdzavejúcej ocele, ľahko sa čistí.

3. Plniaci objem sa reguluje fóliovými ventilmi, aby sa zabezpečila presnosť.

4. Vysokorýchlostné a vysoko presné plniace ventily nezaručujú únik.

5. Je vybavený vysoko účinným systémom kŕmenia uzáverov.

Jazyková voľba

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Hlavné charakteristiky:

---

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Môže si zapamätať veľa parametrov, ktoré sú užitočné pre rôzne technické parametre, všetka dávka sa dá upraviť pomocou dotykovej obrazovky.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5.  Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6.  With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Hlavný technický parameter

---

položka	názov	Technický parameter
01	Rozmer stroja (L * W * H)	2200 mm * 1400 mm * 2800 mm
02	Hmotnosť stroja	Asi 1400 kg
03	Vnútorný priemer otvoru zásobníka	≥φ35mm
04	Vhodný kontajner	1Liter .2Liter
05	Výška kontajnera	80-350 mm
06	Zdroj	AC 380V; 50HZ
07	Moc	5kW
08	Presnosť plnenia	≤ ± 1%
09	Zdroj vzduchu	Stabilný a čistý stlačený vzduch 0,6 MPa
11	Počet plniacich dýz	13
12	Výška dopravníka	900 mm ± 50 mm
13	kapacita	≤ 3 200 kotlov za hodinu (ako test použite vodu)
14	Fľaša v smere podávania	Zľava doprava

Stručné informácie

---

Typ: Plniaci stroj
Stav: Nový
Použitie: Chemická
Typ balenia: Fľaše
Baliaci materiál: drevo
Automatická známka: Automaticky
Druh pohonu: pneumatický
Napätie: 220v
Príkon: 3 kW
Miesto pôvodu: Šanghaj. Čína (pevnina)
Názov značky: VKPAK
Rozmer (L * W * H): 2200 mm * 1400 mm * 2800 mm
Hmotnosť: 1400
Certifikácia: CE
Poskytuje popredajný servis: Inžinieri sú k dispozícii pre servis strojov v zámorí
materiál: SS304
PLC: Panasonic
Dotykový displej: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
